Technicical-mechanical property of the product:
| specification | height of chamber(cm) | Weld spacing (mm) | Expanding size(m2) |
| DTGS 5 | 5 | 400 | 4.5*5 |
| DTGS 5 | 5 | 300 | 6.5*4.5 |
| DTGS 8 | 8 | 1000 | 13.2*4.5 |
| DTGS 8 | 8 | 400 | 4.5*5 |
| DTGS 8 | 8 | 330 | 6.5*4.5 |
| DTGS 10 | 10 | 400 | 4.5*5 |
| DTGS 10 | 10 | 330 | 6.5*4.5 |
| DTGS 15 | 15 | 400 | 4.5*5 |
| DTGS 15 | 15 | 330 | 6.5*4.5 |
| DTGS 20 | 20 | 400 | 4.5*5 |
| DTGS 20 | 20 | 330 | 6.5*4.5 |
| Item | Term | Test measure |
| Tensile strengthmeter for piece kmaterial MPa | ≥23 | GB1040-1992 |
| Weld tensile strength N/10cm | ≥1000 | GB1040-1992 |
| Tensile failure% | ≥600 | GB1040-1992 |
| Low embrittlement temperature | ≤-23 |
Description:

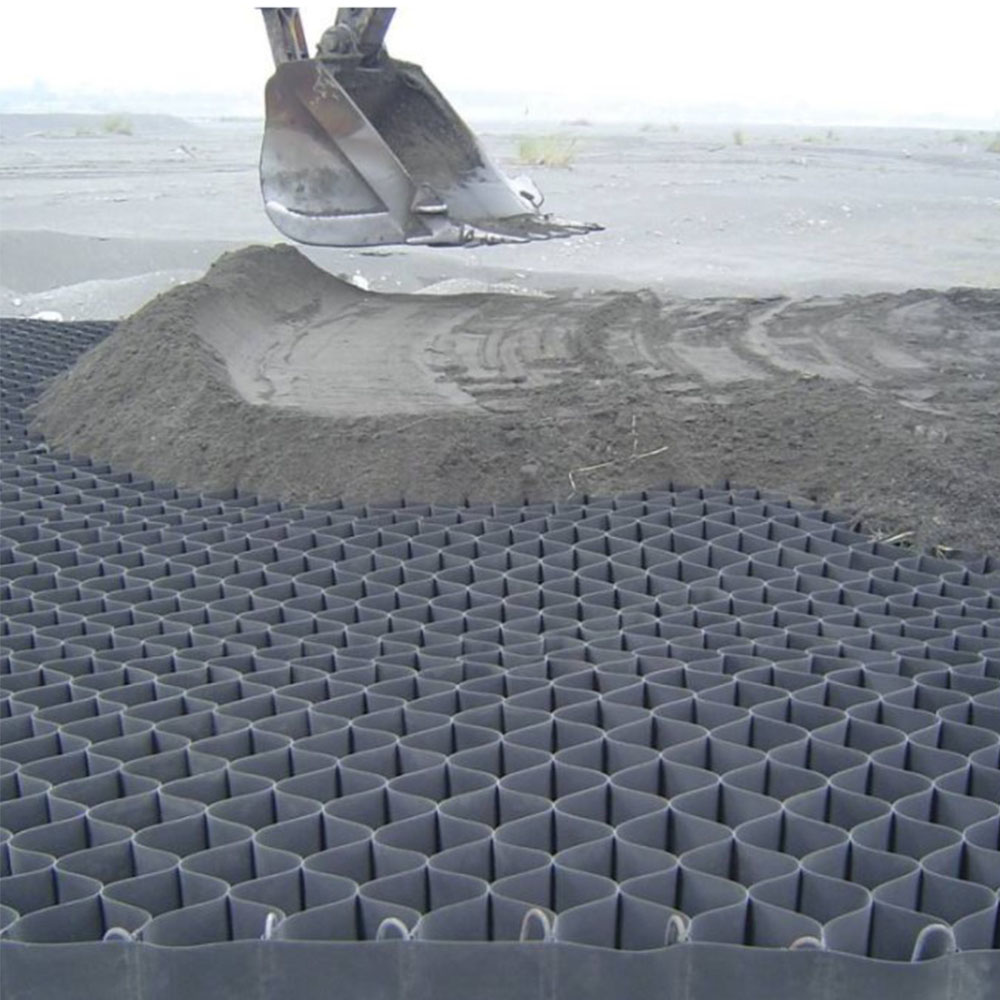

Haisan Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with ASTM implementation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction, the geocell can be pull into a network and launched into a three dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular material, constituted to be a construction which has strong side wise restraint and high rate of stiffness.
Detailed Images:
Features:
1.light material, resistant o wear and chemical properties stability, lightfastness aging, acid and basic resistance, applicable to the different soil and geological conditions of the desert.
2.The lateral limits and higher anti-skid and anti-deformation, effectively increase the carrying capacity of roadbed and decentralized load.
3.High capacity and good dynamic performance, anti-erosion ability.
4.A high degree of geocell change, such as welding geometry from different projects can meet the needs.
5.Flexibility,small transport to connect to facilitate the construction speed.
6.The construction of local materials can reduce construction costs, superimposed with convenient for transportation.
Production line:

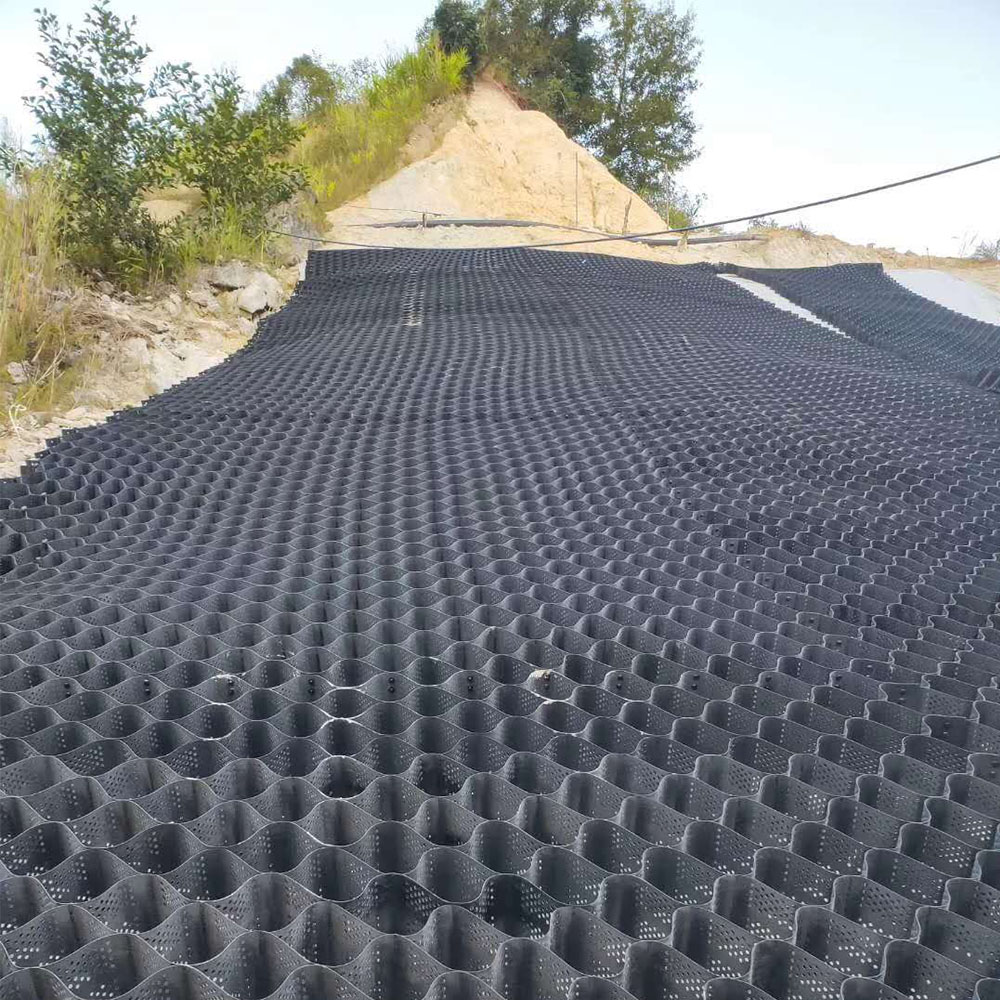

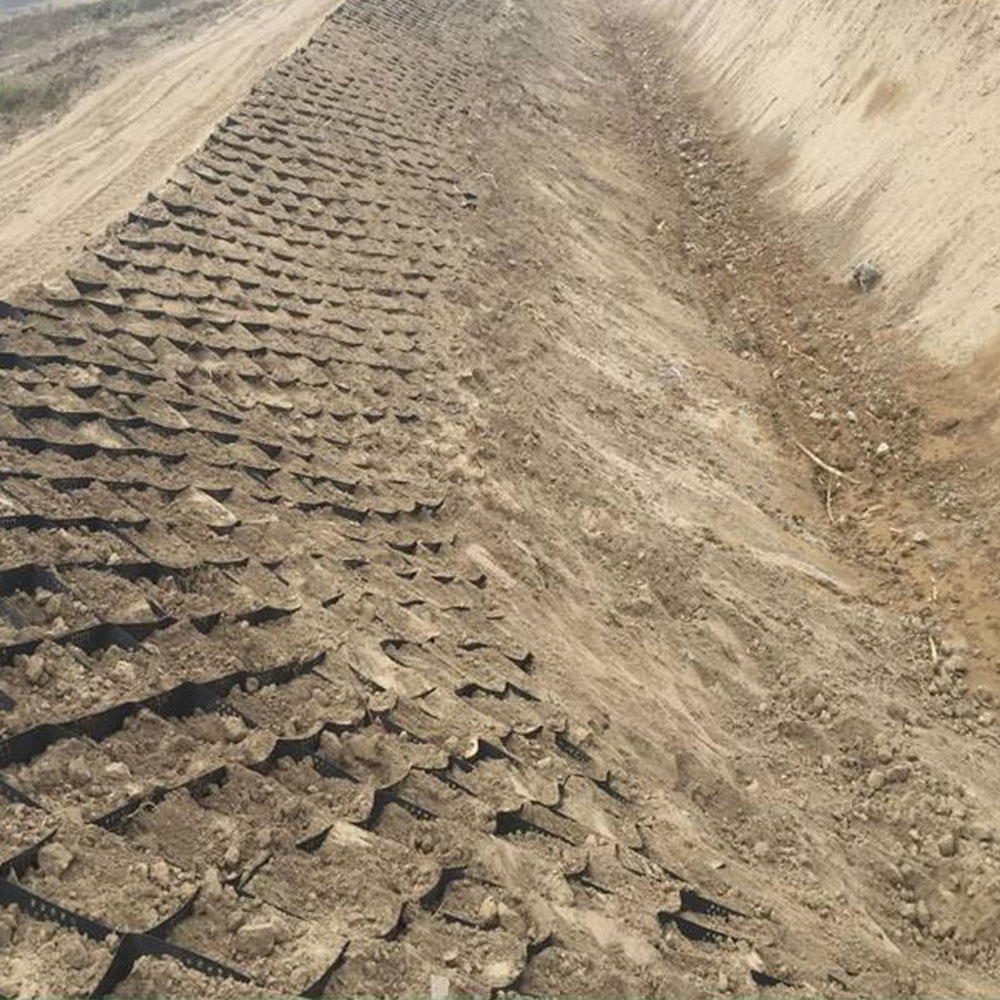

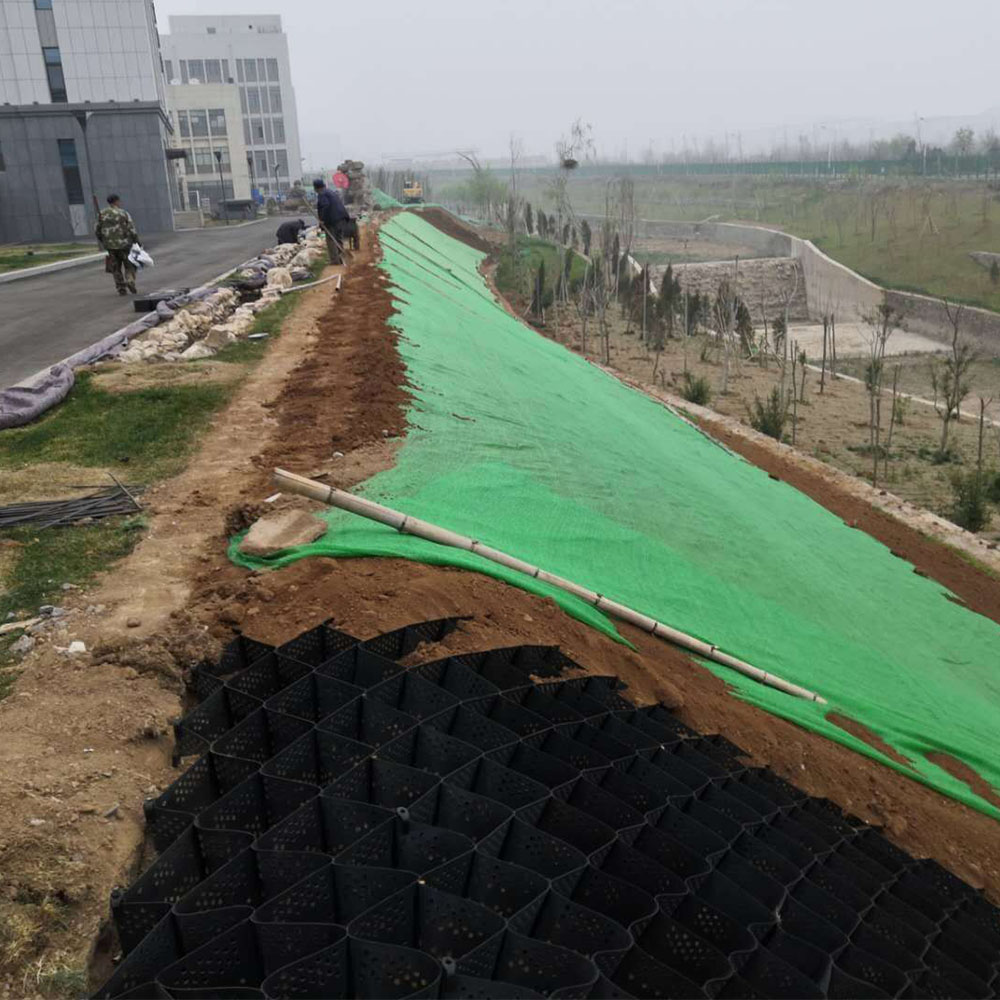

Application
1.stabling railway bed
2.Stabling road soft ground treatment
3.withstanding lad capacities guard against the retaining wall
4.shallow water river courses to govern
5.pipelines and sewer's structural supports
6.prevent the landslide and the load bearing gravity mixed style retaining wall
7.independent walls,the wharf, against slope dike
8.Deserts, the beach and the river bed, the river bank managements.
